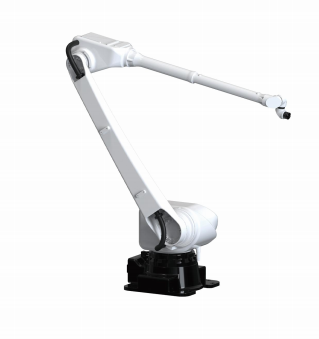

SR12-2000EX Explosion-Proof Spraying Industrial Robot

Specification Item Parameter

Robot Axis Count 6 Axes

Robot End Load 15 KG

Maximum Working Radius of Robot 2000 MM

Robot Body Weight Approximately 330 KG

Maximum Tool End Speed 3 M/S

Protection Class IP65 for Robot Body, IP67 for Wrist Components

Explosion-Proof Certification China Ex Certification

The wrist end adopts the domestically pioneered BBR structure, featuring no singular points on the front side, as well as a lightweight and integrated design that meets the requirements for quick-change applications.

It inherits the high-precision characteristics of industrial robots and works seamlessly with path planning software for effortless operation.

With a large arm span and wide workspace coverage, it satisfies the spraying requirements of work pieces of various sizes.

The entire unit boasts an IP65 protection rating and has obtained explosion-proof certification.
